ROTATE IRREGULAR SURFACE PATTERNS IN REVIT

If your surface pattern is irregular, it may happen that its "Realistic" pattern is not aligned as it should.

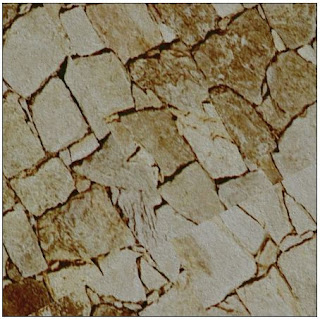

REALISTIC PATTERN IS NOT WELL ALIGNED
If the hidden line pattern is irregular, or if it is a drafting pattern it is not possible to rotate it. The solution is
to temporarily change it to a LINE MODEL pattern, rotate it as needed, and the resulting "Realistic" pattern will rotate as well.

IN THE "GRAPHICS" TAB, CHANGE TO A LINE MODEL PATTERN
USING THE "ROTATE" TOOL, ROTATE THE PATTERN

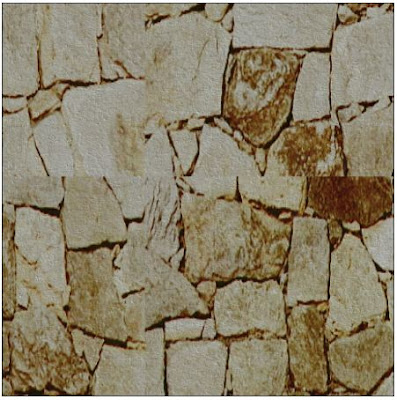

RESULT = IRREGULAR "REALISTIC" PATTERN PROPERLY ALIGNED
